Evaluating 20-Gauge Steel Tube Mechanical Yield Strength and Non-Slip Rubber Base Coefficient of Friction in Jamming Security Bars: Patio Sliding Door Reinforcement (2026)

1. 20-Gauge Steel Tube Mechanical Yield Strength and Deflection Limits

The primary component of a door security bar is the central metal tubing, which must withstand substantial physical impact without bending or collapsing. Low-cost bars often use thin, low-grade aluminum that bends easily under pressure. Premium security bars utilize 20-gauge steel tubing to provide robust protection against forced entry.

20-gauge steel features a high mechanical yield strength, which is the maximum stress a material can withstand before permanent deformation occurs. This high-grade steel allows the bar to resist over 350 pounds of direct force, preventing it from bending or buckling when an intruder attempts to force the door open, ensuring the barrier remains secure.

To prevent bending under impact, the steel tubing must have a low deflection limit. Deflection is the degree to which a structural element bends under a load. The structural thickness and diameter of 20-gauge steel minimize this bending, transferring impact forces down to the floor, where the load is safely absorbed.

Additionally, the steel is treated with rust-resistant coatings to prevent corrosion in humid environments near entry doors. This protection helps maintain the structural integrity and strength of the metal tubing over years of use, ensuring the bar remains a reliable part of your home security setup.

• 20-gauge carbon steel tubing resists over 350 lbs of direct force, preventing bending under impact.
• Low structural deflection limits transfer impact forces efficiently down to the floor.
• Rust-resistant powder coatings protect the steel from corrosion in humid entryways.

2. Rubber Foot Durometer and Coefficient of Friction on Hardwood vs. Tile

A security bar is only effective if its base grips the floor firmly. If the base slides backward under load, the bar will fail to jam the door. To prevent slipping, premium security bars feature pivoting bases coated with high-friction thermoplastic rubber compounds that provide excellent grip.

The performance of the rubber base is determined by its material durometer and coefficient of friction. Durometer measures the hardness of the rubber. A soft durometer provides a flexible grip on hard surfaces like hardwood or tile, while a hard durometer can slip. The optimal durometer balances flexibility with wear resistance.

On hardwood and laminate floors, the rubber base must provide a high coefficient of static friction to prevent sliding. On smooth tile floors, the rubber must resist moisture and dust films that can lower friction. Premium thermoplastic rubber compounds provide a firm grip on all common residential flooring surfaces.

Additionally, the rubber pad is non-marring, preventing scratches, marks, or stains on hardwood or tile floors. This non-marring design allows homeowners to use the security bar daily without worrying about floor damage. The pivoting joint allows the base to lay flat on the floor, maximizing contact area and grip.

• Thermoplastic rubber base provides a high coefficient of static friction, preventing slippage under load.
• Pivoting joint allows the base to align flat on tile, wood, or carpet, maximizing contact area.

3. Yoke Pin Shear Stress Limits and Dual-Function Adjustment Channels

To fit different door heights and configurations, security bars feature adjustable telescoping designs. The inner and outer steel tubes slide relative to each other, locked in place by a metal pin. The shear stress limit of this pin determines the lock's strength under load, preventing collapse.

The lock pin is manufactured from hardened steel alloy, providing high shear strength to resist cutting or bending. When the bar is locked, the pin passes through both tubes, securing the length adjustment. This pin must withstand the shear forces transferred down the bar when the door is pushed.

To provide flexibility, premium security bars feature dual-function adjustment channels. Homeowners can adjust the bar's length in small increments, matching the door height precisely. This fine adjustment ensures the bar can be wedged at the optimal angle, maximizing its jamming effect on hinged doors.

Additionally, the adjustment holes are spaced to prevent weakening the steel tubing. The pin insertion mechanism is designed to lock securely, preventing accidental release. The combination of hardened steel pins and precise adjustment channels ensures a secure length lock under physical load.

• Hardened steel alloy lock pins resist shear stress, preventing the telescoping tubes from collapsing.
• Precise adjustment channels allow for fine length tuning, ensuring the optimal installation angle.

4. Mechanical Wedging Physics and Vector Force Distribution on Entry Doors

The effectiveness of a door security bar relies on the physics of mechanical wedging. When placed under a door handle at an angle, the bar converts horizontal entry forces into vertical forces directed down into the floor. Understanding this force vector distribution is key to optimizing installation.

The optimal installation angle is typically between 15 and 20 degrees relative to the door. At this angle, pushing the door forces the bar down into the floor, increasing the base's grip. This wedging action prevents the door from opening, creating a solid barrier that resists physical force.

If the angle is too steep, the bar may slip upward, releasing the door. If the angle is too shallow, the bar may slide backward along the floor. Proper length adjustment ensures the bar can be wedged at the correct angle, maximizing the downward force vector and grip on the floor surface.

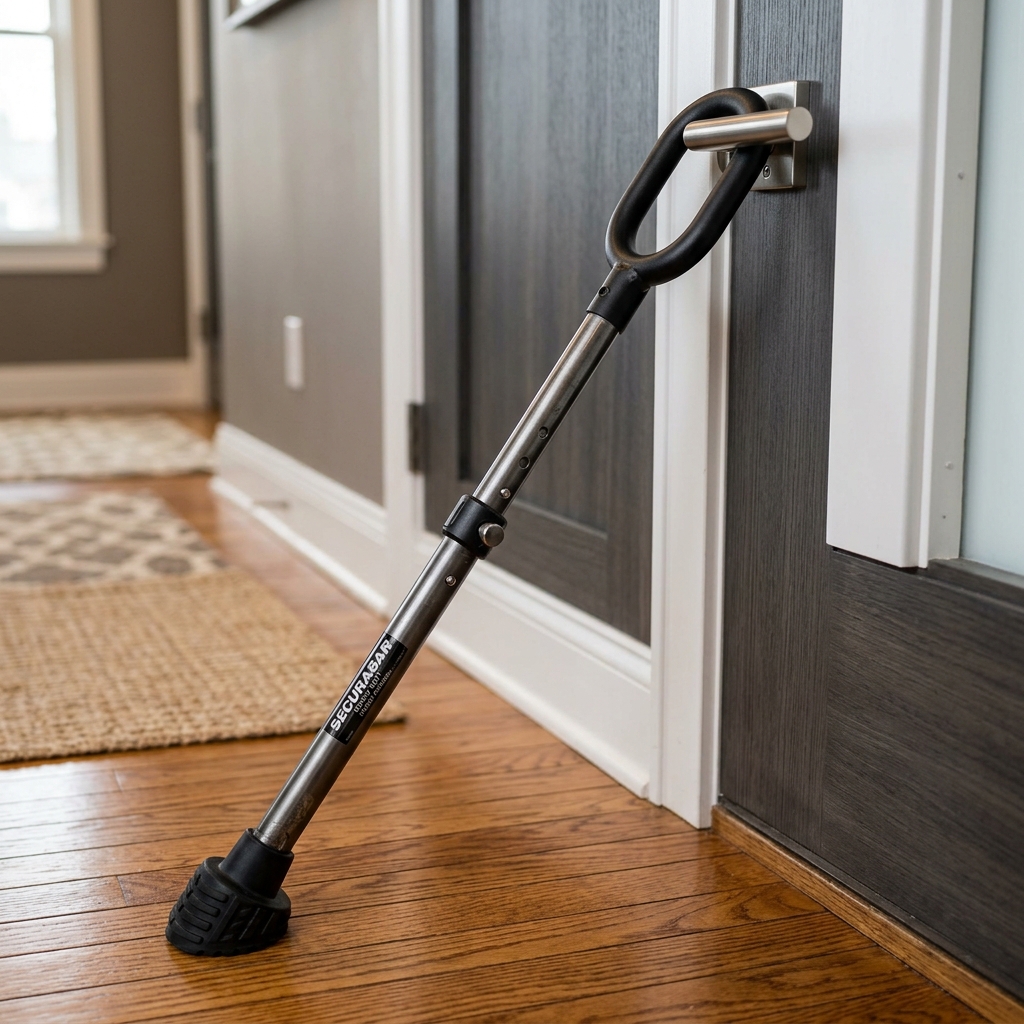

Additionally, the top yoke is designed to fit securely under the door handle, preventing the bar from slipping sideways. The yoke's shape matches standard residential door knobs and levers, providing a secure connection. This wedging design turns the door's opening force into a self-locking mechanism.

• Mechanical wedging converts horizontal entry force into downward vertical force, increasing base grip.
• Top yoke fits securely under door handles, preventing the bar from slipping sideways under load.

5. Patio Sliding Door Track Interlock and Anti-Lift Mitigations

Patio sliding doors represent a common target for intruders, as their locks can be weak and easily bypassed. To secure these doors, security bars can be configured for horizontal installation. The bar is placed in the door track, blocking the sliding panel physically from opening.

To configure the bar for sliding doors, the top yoke is removed, revealing a flat end that fits inside the door track. The bar's length is adjusted to match the width of the sliding door, blocking movement. This physical block prevents the door from being forced open from the outside.

In addition to blocking sliding movement, the bar provides anti-lift mitigation. Intruders can bypass sliding doors by prying the door panel upward, lifting it out of its tracks to bypass locks. Placing the security bar horizontally in the track helps prevent this lifting, securing the door panel in place.

Furthermore, the bar's presence is visible from the outside, acting as a visual deterrent. Intruders looking through the glass will see the bar in the track, warning them that the door is reinforced and discouraging break-in attempts. This visibility helps protect your home's secondary entryways.

• Horizontal installation blocks the sliding door track physically, preventing forced entry.
• Physical blocking in the track helps prevent intruders from lifting the door panel out of its frame.

6. Portability Locking Pin Shear Strength and Travel Storage Dynamics

For travelers or renters, portability is an important feature for a security bar. The bar must be easy to collapse, pack, and transport, while maintaining its strength when installed. Managing this portability requires collapsible designs and secure locking pins.

Premium security bars feature collapsible designs, allowing the telescoping tubes to slide completely inside each other for compact storage. The bar can be packed in a suitcase or stored in a closet when not in use. This portability makes it a valuable security option for hotel rooms or temporary rentals.

To lock the bar securely when extended, the locking pins must have high shear strength to resist bending under physical load. The pins are manufactured from hardened steel alloy, ensuring they do not fail during a break-in attempt. This pin strength is critical for maintaining reliable protection.

Additionally, the collapsible joint is designed to slide smoothly, preventing jamming during adjustment. The locking pin mechanism is easy to operate by hand, allowing for quick installation and removal. This user-friendly design helps ensure the bar is used consistently by travelers.

• Collapsible telescoping design allows the bar to compress for travel storage and portability.
• Hardened steel locking pins secure the extended tubes, resisting physical forces during use.

7. Vibration Dampening and Impact Absorption Under Kick-In Strikes

When an intruder attempts to kick a door open, the security bar experiences sudden, high-impact forces. If the bar is rigid and lacks shock absorption, these forces can crack the door handle, fracture the floor base, or cause the bar to bounce off. Vibration dampening is essential for absorbing these impact forces.

Premium security bars feature integrated vibration-dampening components, such as rubber yokes and spring-assisted joints. These components compress slightly under sudden impact, absorbing shock energy and reducing peak forces on the door handle and base. This absorption prevents component fractures.

The pivoting base also acts as a shock absorber. The rubber pad compresses under impact, distributing force across a larger floor area. This compression increases static friction, preventing the base from sliding or shifting during repeated strikes. The stable base helps keep the door secured.

Additionally, the steel tubing features wall thicknesses calculated to absorb impact energy through elastic deflection. The steel bends slightly under peak load and returns to its original shape, preventing permanent damage. This combination of materials and design helps ensure long-term reliability under kick-in strikes.

• Rubber yokes and spring-assisted joints absorb impact energy, protecting door components from fractures.
• Pivoting rubber base compresses under impact, distributing force and increasing static friction.

8. Longevity Testing and Rust-Resistant Coating Durability

Because door security bars are used near exterior entryways, they are exposed to humidity, temperature shifts, and moisture from wet shoes or rain. Over time, this moisture can cause steel components to rust, weakening the bar. To ensure long-term durability, the steel tubing must have rust-resistant coatings.

Premium security bars are finished with durable powder coatings or zinc-plating. These coatings create a physical barrier that prevents moisture and oxygen from reaching the steel, blocking rust. The finish is baked on at high temperatures, ensuring it resists scratching and peeling during daily use.

To verify durability, manufacturers test their bars in salt-spray chambers. These chambers expose the coated steel to corrosive salt fog, simulating years of coastal or humid exposure. The coating must survive these tests without bubbling, peeling, or showing signs of rust, ensuring long-term strength.

Additionally, sliding telescoping joints are treated with thin-film dry lubricants. These lubricants reduce wear and friction during adjustment without attracting dust or debris, which could cause jamming. This lubrication helps ensure the bar adjusts smoothly and remains a reliable home security tool.

• Durable powder coatings and zinc-plating protect steel tubing from rust in humid environments.
• Salt-spray chamber testing verifies coating durability, ensuring long-term structural strength.

9. Secondary Lock Integration and Dual-Barrier Security Layering

To maximize home security, door security bars should be used as part of a multi-layered security plan. Relying on a single mechanical barrier leaves you vulnerable if that barrier is bypassed. Pairing the bar with secondary deadbolts, strike plate reinforcements, or smart door sensors creates a dual-barrier system that is much harder to breach.

Integrating the physical bar with electronic sensors is an effective layering strategy. If an intruder attempts to force the door, the vibration triggers the door sensor immediately, sounding the home alarm. The physical bar then blocks the door from opening, keeping the intruder outside while emergency services are dispatched.

Furthermore, verifying the condition of all entry locks and hinges periodically helps prevent weak links in your security. Upgrading to heavy-duty strike plates with 3-inch screws secures the door frame, preventing the wood from splitting under pressure. This combination of physical barriers and reinforced framing provides robust entry defense.

• Dual-barrier layering pairs physical security bars with electronic door sensors for coordinated alerts.
• Upgrading door frames with heavy-duty strike plates and long screws prevents wood splitting under impact.
